CPSC 427a: Object-Oriented Programming

Michael J. Fischer

Lecture 9
September 27, 2012

Visualization Complicated relations among program parts are often easier to understand from diagrams.

The textbook makes liberal use of data structure and other diagrams.

The Unified Modeling Language (UML) is particularly useful for diagramming class relationships in object-oriented programs.

We give two examples here of diagrams that may help one understand the bar graph example that we have been discussing.

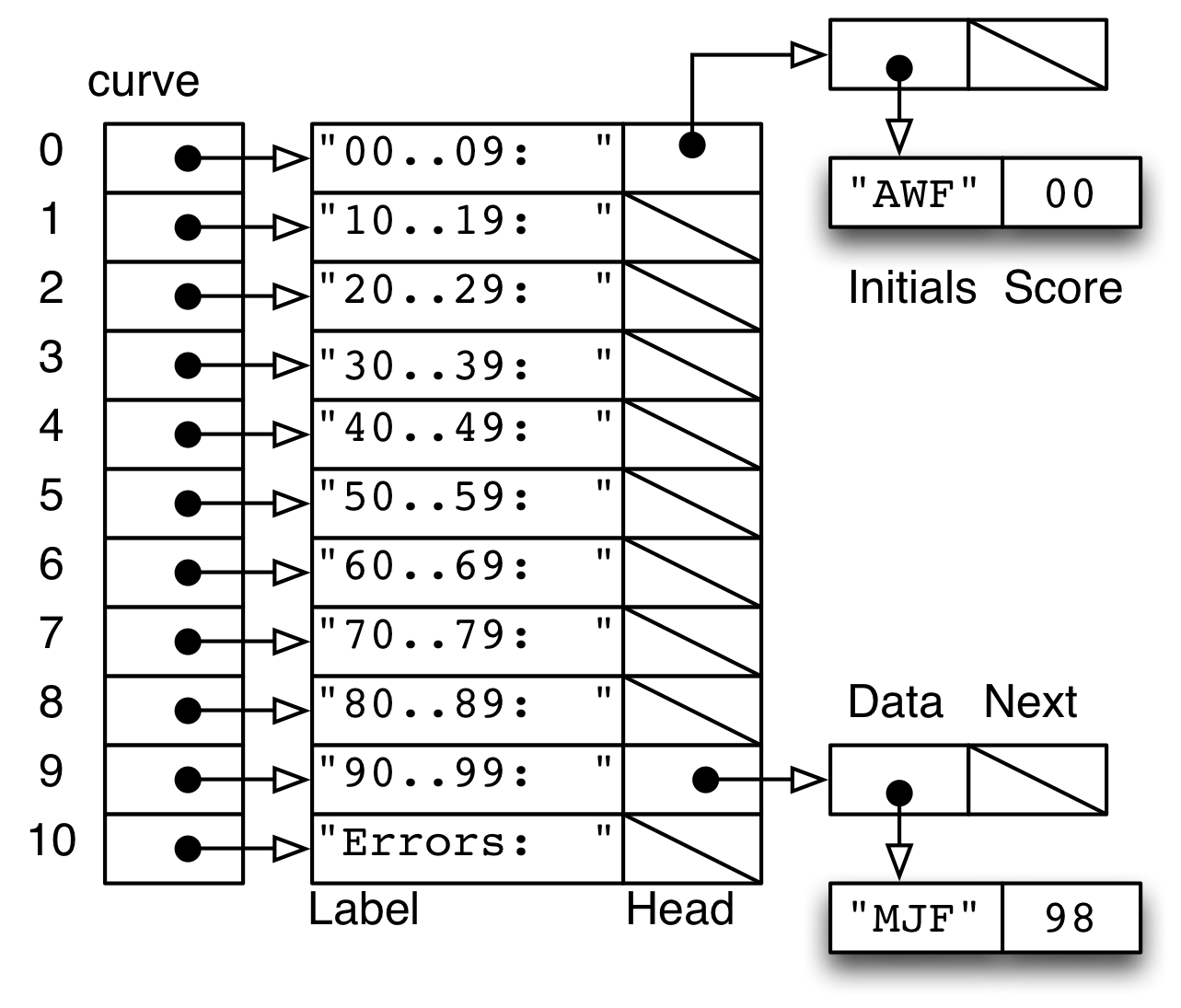

Bar graph data structure

UML Diagram

L-values and R-values Programming language designers have long been bothered by the asymmetry of assignment.

Expressions are treated differently depending on whether they appear on the left or right sides of an assignment statement.

Something that can appear on the left is called an L-value.

Something that can appear on the right is called an R-value.

Intuitively, an L-value is the address of a storage location – some place where a value can be stored.

An R-value is a thing that can be placed in a storage location.

R-values are sometimes called pure data values.

Simple object declaration

The declaration int x = 3; says several things:

1. All values that can be stored in x have type int.
2. The name x is bound (when the code is executed) to a storage location adequate to store an int.
3. The int value 3 is initially placed in x’s storage location.

The L-value of x is the address of the storage location of x.

The R-value of x is the object of type int that is stored in x.

Simple assignment

The assignment statement x = 3; means the following:

1. Get an L-value from the left hand side (x).
2. Get an R-value from the right hand side (3).
3. Put the R value from step 2 into the storage location whose address was obtained from step 1.

Automatic dereferencing

Given

Consider

x = y;

This is processed as before, except what does it mean to get an R-value from y?

Whenever an L-value is presented and an R-value is needed, automatic deferencing occurs.

This means to go the storage location specified by the presented L-value (y) and get its R-value (4).

Then the assignment takes place as before.

Pointer values

• A pointer [reference value] is a primitive object with an associated L-value.
• The pointer itself is an R-value.
• The type of a pointer is the type of the value that can be stored at the associated L-value, followed by *
• Example: If y is a simple integer object, then the type of a pointer to y is int*.
• We say the pointer references y.

Pointer creation

• Pointers are created by applying the unary operator & to an L-value.
• Example: If y has type int, then the expression &y is a pointer of type int* that references y.
• More generally, if x has type T, then the expression &x yields a pointer (R-value) of type T* that references x.

Pointer objects

Objects into which pointers can be stored are called (not surprisingly) pointer objects.

A pointer object is no different from any other object except for the types of values that can be stored in it.

• int* q declares q to be an object into which pointers of type int* can be stored.
• If x is an integer object, then the assignment q = &x creates a pointer to x and stores it in q.

Just as we often conflate “integer” and “integer object”, it is easy to confuse “pointer” with “pointer object”.

Pointer assignment

Pointers can be assigned to pointer objects.

• If p and q are pointer objects of the same type, then p = q; is an assignment statement.
• It has the same interpretation as any other assignment, i.e., fetch the (pointer) value from q and store it in p.
• Example: If q = &x as before, then after p = q, p contains a copy of the pointer stored in q. Both of these pointers reference the L-value of x.
• Note that the L-value q is dereferenced to an R-value, which is then placed in p.
• Dereferencing does not follow the pointer.

Following a pointer

To follow a pointer means to obtain the L-value it references.

• The basic operator for following a pointer is unary *.
• * is the inverse of &. It takes a pointer and returns its corresponding L-value.
• If E is a pointer expression, then *E is the L-value referenced by the pointer that results from evaluating E.
• If E has type T*, then the values stored in *E have type T.
• We say that E points to *E.

Pointer example

Pointer declaration syntax

A word of warning

int x, y; is shorthand for int x; int y; but

int* p, q; is not same as int* p, int* q.

Rather, it means int* p; int q;.

For this reason, many authors put the * next to the variable instead of with the type name.

Spacing around the star doesn’t matter, but logically it belongs with the type.

Reference types Recall: Given int x, two types are associated with x: an L-value (the reference to x) and an R-value (the type of its values).

C++ exposes this distinction through reference types and declarators.

A reference type is any type T followed by &, i.e., T&.

A reference type is the internal type of an L-value.

Example: Given int x, the name x is bound to an L-value of type int&, whereas the values stored in x have type int

This generalizes to arbitrary types T: If an L-value stores values of type T, then the type of the L-value is T&.

Reference declarators

The syntax T& can be used to declare names, but its meaning is not what one might expect.

The declaration must include an initializer.

The meaning of int& y = x; is that y becomes a name for the L-value x.

Since x is simply the name of an L-value, the effect is to make y an alias for x.

For this to work, the L-value type (int&) of x must match the type declarator (int&) for y, as above.

Use of named references

Named references can be used just like any other variable.

One application is to give names to otherwise unnamed objects.
